Water Treatment

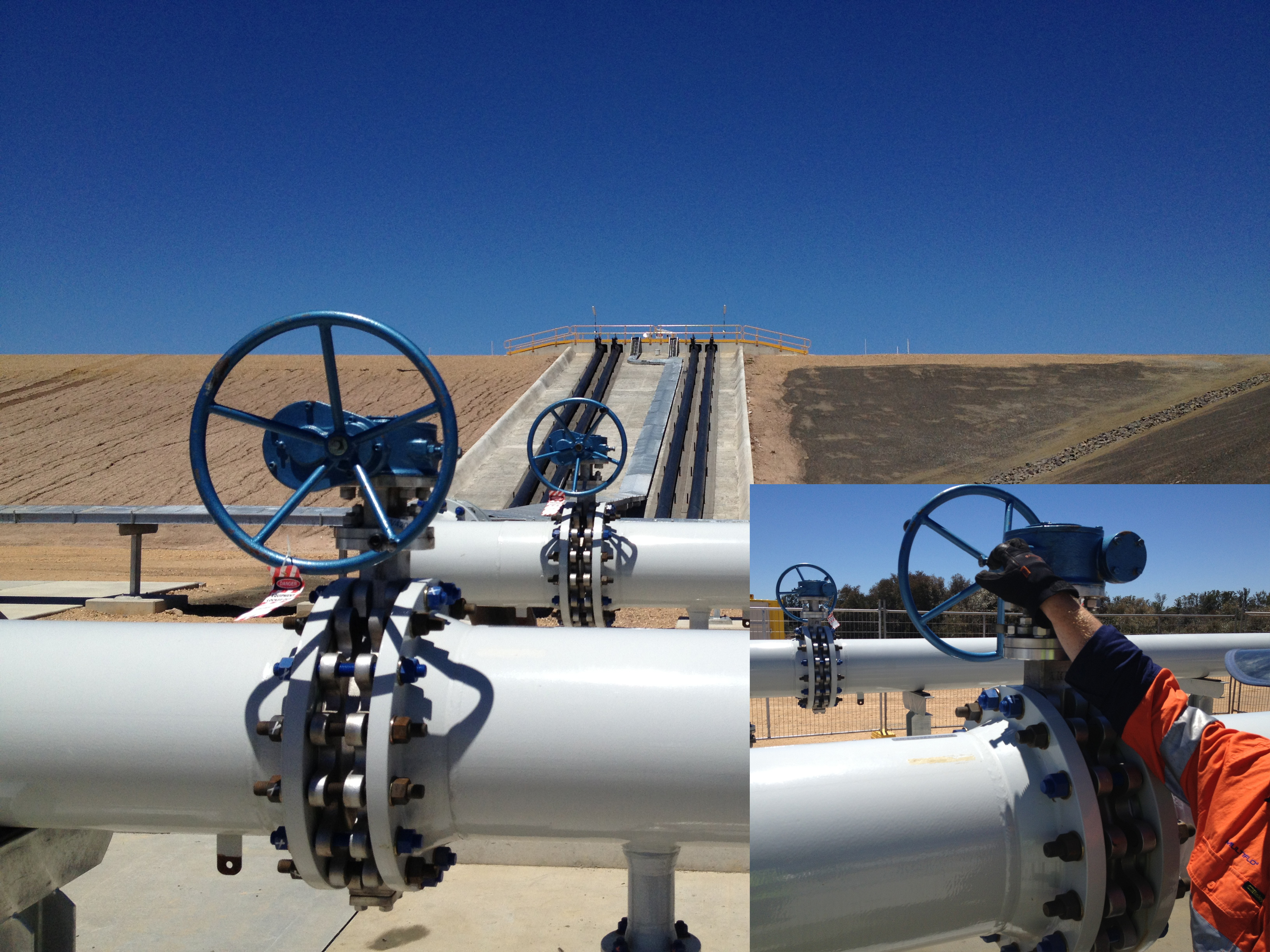

Ruby Jo Pond Pump Station
Material
Fluid Temp. 10-32℃
Ambient Temp. -10- +46℃
Maximum Design Temp. 50℃
Minimum Flow: 7.2 ML/d(83.33L/s)
Maximum Flow: 28.8ML/d(333.33L/s)
Pump Station Design Pressure:1125 KPa
Peak Design Pressure(Transient): 1569 KPa
Project

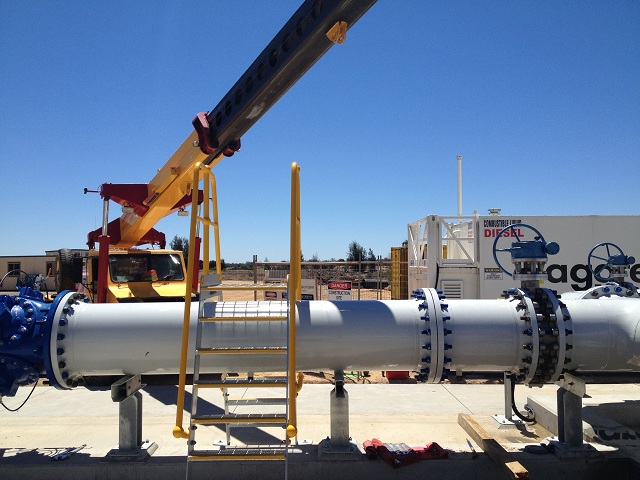

Queensland Gas Company Orana 1 Pump Station
Plant location
Buyer
Weir Minerals
Valves
Ball valves, Check valves, Butterfly valve(2"~24" 150LB)
Duplex steel 2205
Design Temperature
Design Flow Rate
Design Pressure
Valve Maximum Flow Rate
Varies
Pressure Loss@Normal/Maximium Flows
Depends on actual flow volume
System Pressure
Varies from 0 KPag to peak design pressure. System pipe work is class 150(ASME B16.5)
