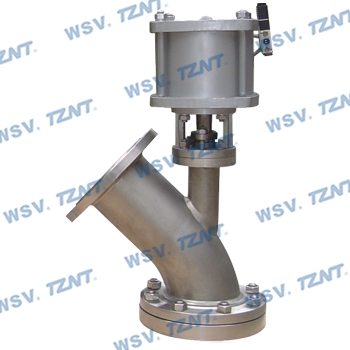

Hastelloy pneumatic discharge valve
  • Weidouli Valves Co.,Ltd-1st Plant.: No.10, Fukang West Road, Yongxing Industrial Zone, Wenzhou City, P.R.China　2nd Plant.: No.20, Xingyu Road, Airport Industrial Zone, Wenzhou City, P.R.China-Website:http://www.wsv-valve.com-TechnicalSpecificationDesign Standard: API, ASME, EN, ISO, JIS,DIN, BS, GBConnection type: Flange, Wafer, SW, NPT, BWPressure range: 150LB~1500LB,1.0MPa~25.0MPa, JIS10K~100KSize range: NPS3/8”-32”,DN10~DN800Drive: Lever, Gear, Electric, Pneumaticactuator…
  • Product overview
  • Product line catalogue

Technical Specification

Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB,HG

Connection type: Flange, BW

Pressure range: 150LB~1500LB, 1.0MPa~25.0MPa, JIS10K~40K

Size range: NPS1/2”-12”, DN15~DN300


Design Feature:

Open upward / Open downward

Double stem structure

Crystal proof

Blow-out proof stem


Main Part Material :

Hastelloy B、Hastelloy B-2、Hastelloy C276、Hastelloy C-22、Hastelloy C-4、Hastelloy G、Hastelloy G30

N12MV、N7M、CW12MV、CX2MW、CW2M

N10001、N10665、N10276、N06022、N06455、N06007、N06030
