Technical Specification

Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Connection type: Flange, SW, NPT, BW, Wafer, Lug type

Pressure range: 150LB~1500LB, 1.0MPa~25.0MPa, JIS10K~100K

Size range: NPS1/2”-42”, DN15~DN1200

Design Feature:

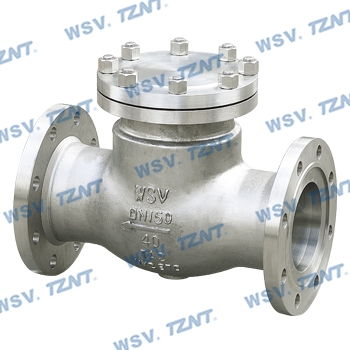

Lift type / Swing type/ Dual plate

Full bore / Reduce bore

Bolted bonnet

Renewable seat / integral seat

Plug type disc/Flat type disc

The surface form a protective film after Hard face treatment for trim. It not only improves anti-corrosion performance, but also can open and close easily because of improved surface hardness.

Main Part Material :

Titanium Gr2、Gr3、Gr5、Gr6、Gr7、Gr12

Titanium GrC2、GrC3、GrC5、GrC6、Ti-Pd7B、GrC12

Titanium GrF2、GrF3、GrF5、GrF6、GrF7、GrF12
